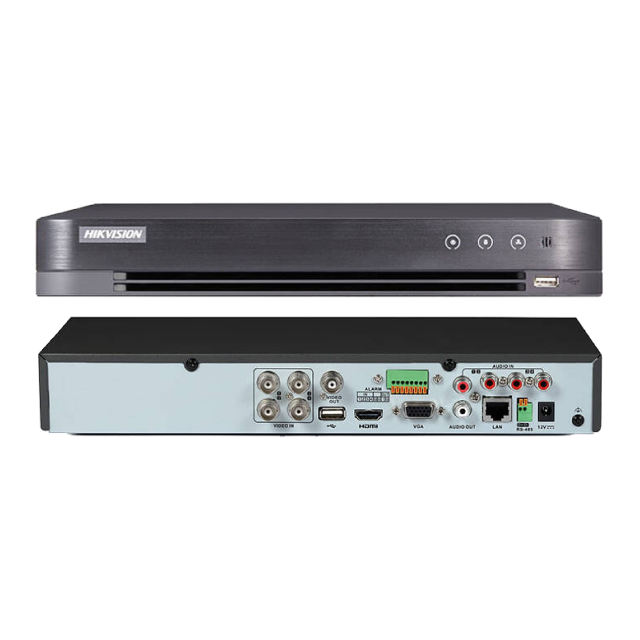

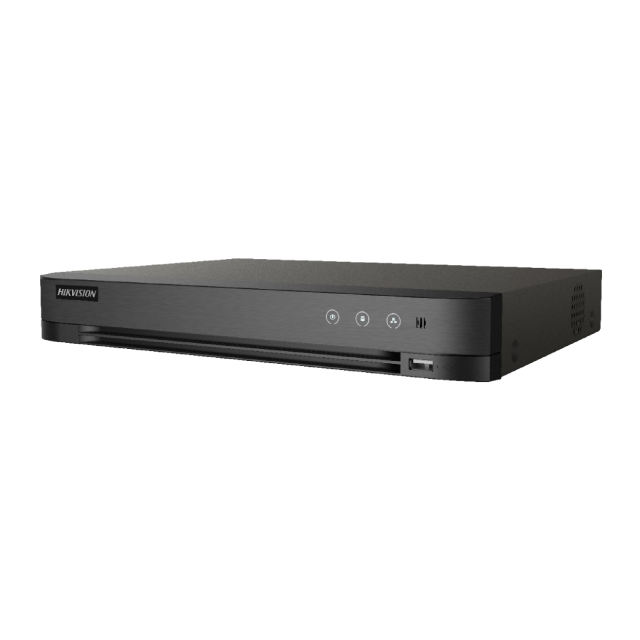

4-ch 5 MP 1U H.265 AcuSense DVR | iDS-7204HUHI-M1/S

Name: 4-ch 5 MP 1U H.265 AcuSense DVR | iDS-7204HUHI-M1/S
Brand: Viskou E-Shop |CCTV, Network, Door Access, Server Rack, Accessories
SKU: 300226866
Price: 404 MYR
Availability: InStock

iDS-7204HUHI-M1/S

- 4 channels and 1 HDD 1U AcuSense DVR
- Efficient H.265 pro+ compression technology
- Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
- False alarm reduction by human and vehicle target classification based on deep learning

RM404.00 ~~RM727.00~~

(Excluding Taxes)

Quantity

-

+

26 In Stock, Puchong

5 In Stock, Johor Bahru

1 In Stock, Penang

Add to Favorite Items

Description

iDS-7204HUHI-M1/S
4-ch 5 MP 1U H.265 AcuSense DVR

4 channels and 1 HDD 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected.

Specification

Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Human/Vehicle Analysis	Up to 4-ch
Facial Detection And Capture	Face picture detection, face picture search
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Video Bitrate	32 Kbps to 10 Mbps
Dual-Stream	Support
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
IP Video Input	2-ch (up to 6-ch) Up to 8 MP resolution Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras

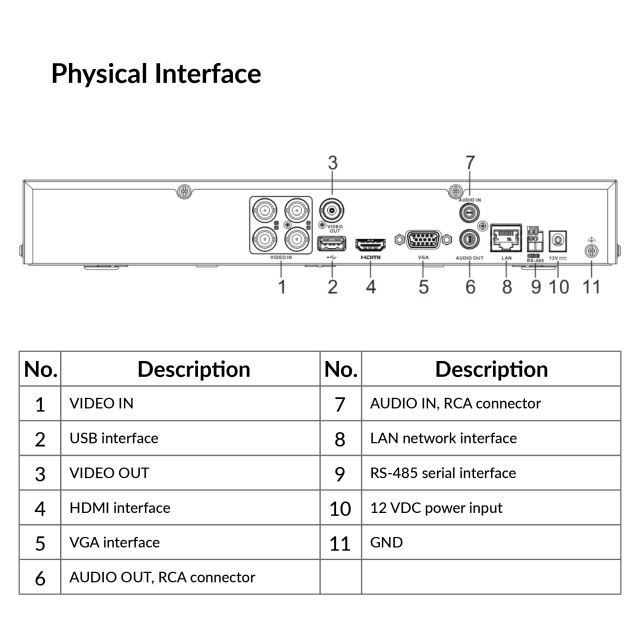

Analog Video Input	4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Synchronous Playback	4-ch
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Total Bandwidth	96Mbps
Network Interface	1, RJ45 10M/100M self-adaptive Ethernet interface
SATA	1 SATA interface
Capacity	Up to 10 TB capacity for each disk
Power Supply	12 VDC
Consumption	≤ 10 W
Working Temperature	-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity	10% to 90%

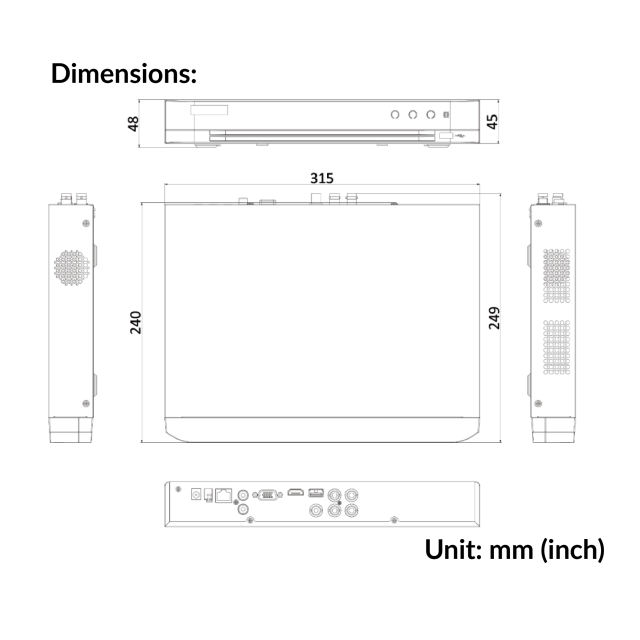

Dimension (W × D × H)	315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight	≤ 1.5 kg
