Image Sensor
|
1/2.7" Progressive Scan CMOS
|
Min. Illumination
|
Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
|
Angle Adjustment
|
Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°
|
Wide Dynamic Range
|
Digital WDR
|
Day & Night
|
IR Cut Filter
|
Field of Vision
|
2.8 to 12 mm: 96° to 36° (H), 51° to 20° (V), 113° to 42° (D)
|
IR Distance
|
Up to 30 m
|
Video Compression
|
H.265+/H.265/H.264+/H.264
|
Max. Resolution
|
1920 × 1080
|
Max. Frame
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
|
Power
|
12 VDC ± 25%, 0.8 A, max. 10 W, Ø 5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.32 A, max. 11.5 W
|
Working Temperature
|
-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
|
Protection
|
IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
|

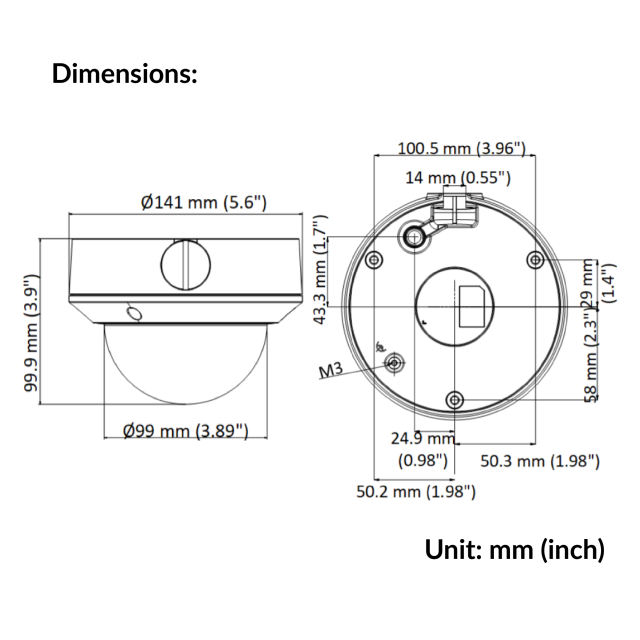

Dimensions
|
Ø 141 mm × 99.9 mm (5.6" × 3.9")
|
Weight
|
Approx. 820 g (1.8 lb.)
|
